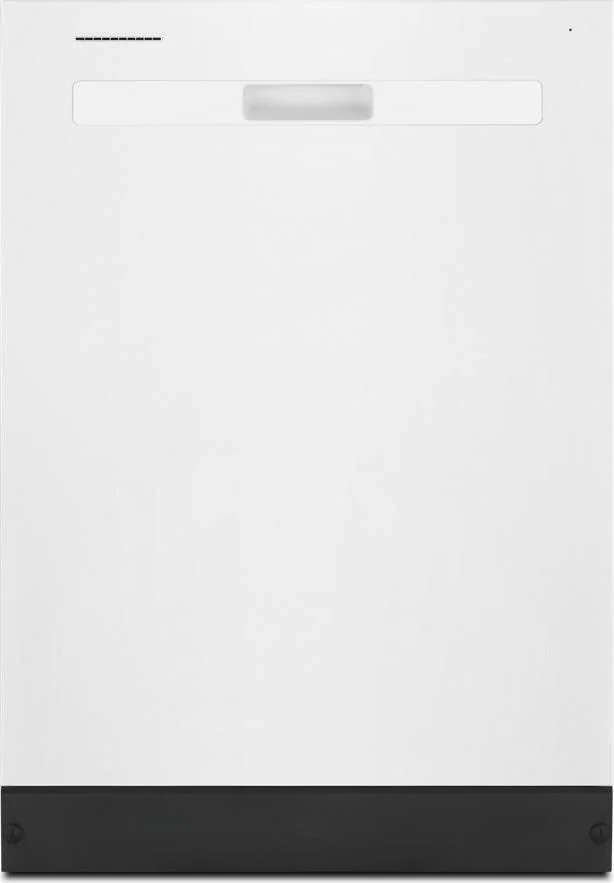

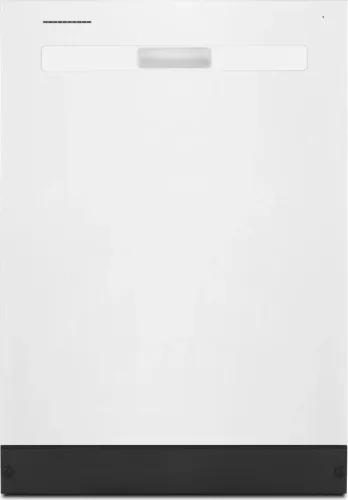

Whirlpool 24" Fully Integrated Built-In Dishwasher, 12 Place Setting Capacity in White

SKU: WDP540HAMW
  • Width: 23.88"
  • Height: 33.50"
  • Depth: 24.50"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: No
  • Number of Wash Cycles: 5
  • Stainless Steel Tub: No
  • Fully Integrated Controls: Yes
  • Tall Tub: Yes
  • Decibel Level: 55.0 db
  • Cycles Count: 5
Whirlpool | Authorized Dealer
In Stock|Only 1 left

color: White

Whirlpool WDP540HAMBWhirlpool WDP540HAMZ
Whirlpool WDP540HAMW

Estimates for:

Protect Your Item

$529.99

$629.99 Save$100.00
EARN 529 POINTS (sign in / sign up for free)
  • Quick Wash Cycle
  • Boost Cycle

Protect Your Item

PACKAGES

PRODUCT DESCRIPTION

Clean dishes with a 55 dBA quiet dishwasher. Three 5" Cup Shelves free up extra space and a Boost Cycle provides extra effort for cleaning up stubborn messes. This dishwasher includes an Extended Dry Option to elevate drying performance and a Triple Filtration Wash System that filters food particles and cleans the water between wash stages.

Features

Quick Wash Cycle

Quick Wash Cycle

Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.

Boost Cycle

Boost Cycle

Skip scrubbing and pre-rinsing with the Boost Cycle. This cycle uses more water, time and heat than the Normal Cycle and takes less time than the Heavy Cycle so you can target tough messes that need a little extra effort.

Specifications

Ada Compliant

No

Cee Tier Rating

Tier I

Energy Star Qualified

No

Nsf Certified

Yes

Prop65

Standard

Star K Certified

No

Automatic Temperature Controls

Yes

Control Location

Top

Control Type

Electronic Touch

Last Cycle Recall

Yes

Status Light

Blue

Number of Wash Cycles

5

Built-in Water Softener

No

Decibel Level

55

Dishwasher Cycle Selection

Boost; Extended Soak; Heavy; Normal; Quick Wash

Dishwasher Option Selections

Extended Dry; Heated Dry; Hi Temp Wash; Sani Rinse

Dispensers

Detergent and Rinse Aid

Drying System Type

Heating Element

Number of Place Settings

12

Number of Racks

2

Number of Wash Levels

4

Number of Washarms

2

Rack Material

Nylon

Rinse Aid Dispenser Level Indicator

Optical Level Indicator

Sensor

No

Sound Package

Quiet Pack(TM); Yes

True Hold Door

No

Tub Material

Plastic with Stainless Steel Door

Tub Style

Built-in Tall Tub 24in.

Wash System Type

Removable Filter

Water Filtration

Yes

Product Height

33.5

Depth Closed Excluding Handles

24.5

Carton Height

35.67

Gross Weight

80

Depth Closed Including Handles

24.5

Carton Depth

26.69

Carton Width

24.56

Product Depth

24.5

Net Weight

69

Product Width

23.875

Depth With Door Open 90 Degree

49.5

Power Cord Included

No

Door Style

Flat

Handle Type

Long Pocket

Window

No

Decibel Level (dba)

55

Dishwasher Rack Material

Nylon

Energy Star(r) Qualified

No

Kosher Consumer Friendly

No

Dishwasher Features

Boost Cycle

Eco Series

Yes

Interior Light

No

Lower Rack Glides

Wheels

Motor Horsepower

.075

Lower Rack Cushion-tip Tines

No

Lower Rack Fold-down Tines

No

Lower Rack Style

Straight

Second Level Rack Adjustable

No

Second Level Rack Cushion-tip Tines

No

Second Level Rack Extras

3-Plasic Cup Shelves

Second Level Rack Fold-down Tines

No

Silverware Basket Covers

Yes

Silverware Basket Location

Lower Rack - Right Side

Silverware Basket Type

Full Length Non Splittable

GTIN

00883049627038

EAN

0883049627038

UPC

883049627038

Keep your kitchen quiet during cleanup with a low sound level

An American company in business since 1911

Get the look you prefer with the towel bar or pocket handle option

Skip scrubbing and pre-rinsing with the Boost Cycle

Never forget to restart a cycle with the Cycle Interrupt Light Signal

Easily start the dishwasher with the last cycle you picked

See the status of your dishes with the Cycle Status Indicator

Extend your dry time to elevate drying performance

Presoak and wash in one cycle with the Extended Soak Cycle

Get clean, dry dishes with the Heated Dry Option

Clean heavily soiled messes with the Heavy Cycle

Help remove grease and grime with a high temperature wash

Hybrid Tub with Dark Gray Interior helps mask food stains

Clean normal amounts of food soil with the Normal cycle

The Nylon Rack Coating ensures long-lasting use

Help prevent water overfill with Overfill Detect

Clean dishes faster with the Quick Wash Cycle

Wash all of your dishes at once with Room for 12 Place Settings

Sanitizes dishes by eliminating 99.999% of food soil bacteria

Sani Rinse Option eliminates 99.999% of bacteria

Traps food soils and cleans the water between wash stages

Boost Cycle

Quick Wash Cycle
