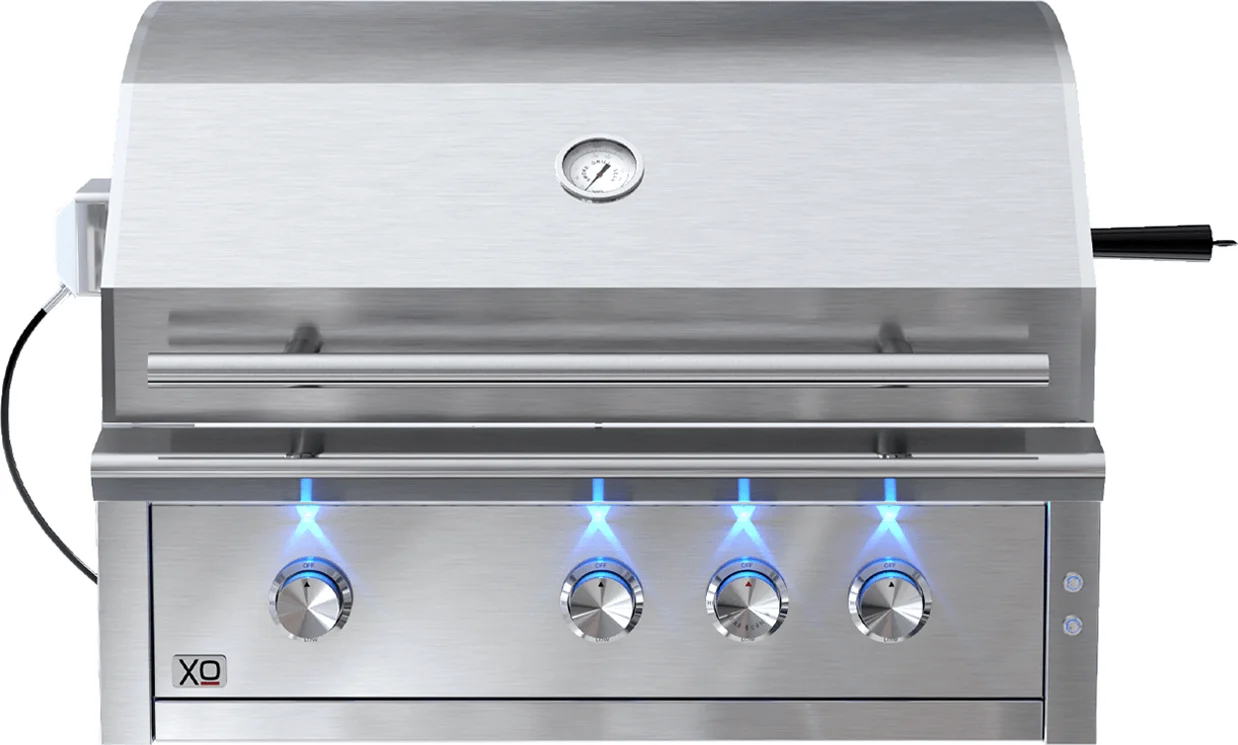

PRODUCT DESCRIPTION
Features
COOKING ZONES
Cook your way with powerful, interchangeable 22,000 BTU burners each separated by removeable dividers create independent cooking zones.
MAKE YOUR MARK
Heavy duty, welded 304 stainless grates hold the heat for strong grill marks.
FLAME THROWER IGNITION
Just push and turn for fast, reliable ignition. Operates without th eneed for an electrical hookup.
304 STAINLESS WELDED CONSTRUCTION
Heavy duty, welded 304 stainless grill body and solid cast stainless burners designed to resist the elements and corrosion.
ELEGANT LIGHTING
Brilliant blue LEDS illuminate the controls and dramatically accent your entertaining.
RAPID RESPONSE INFRARED BURNER
MORE VERSATILE SPACE
Bigger cooking areas, over-sized secondary rack for indirect cooking hold a 1/4 baking sheet and flips up out of the way when not in use.
RADIANT BRIQUETTES
Pyramid shaped ceramic briquettes transfer heat to vaporize drippings for added flavor and to reduce flare ups.
CAST STAINLESS STEEL BURNERS
Each 22,000 BTU Cast SS burner weighs in at a massive 7 lbs. The unique bridged shape distributes the flame pattern for maximum efficiency.
NO HEAVY LIFTING
Double Wall Welded 304 Stainless Hood lifts effortlessly with spring assist.
ONE GOOD TURN
XO Grills come with an infrared rotisserie burner for indirect cooking and a 25 lb. capacity Pro Grade waterproof motor and spit.
Specifications
Collection
Pro Grade
Origin
China
UPC
814830011354
Height
25"
Width
36"
Depth
26 5/16"
Cut-Out Depth (in.)
22"
Cut-Out Height (in.)
10 7/8"
Cut-Out Width (in.)
34 3/4"
Product Weight
170
Warranty 1 Explained
One Year limited warranty for the repair or replacement of any parts found to be defective at no cost to the original purchaser.
Warranty 2 Explained
Two Year limited material and workmanship warranty on all other grill parts to the original purchaser. The actual part will be repaired or replaced free of charge with the owner paying all other costs including installation, labor, shipping and handling.
Warranty 3 Explained
5 Year Limited material and workmanship warranty on the Stainless steel grates, drip pans, briquette trays and valves to the original purchaser. The actual part will be repaired or replaced free of charge with the owner paying all other costs including installation, labor, shipping and handling.
Warranty 4 Explained
Limited Lifetime material and workmanship warranty on cast stainless steel burners and fabricated stainless steel housing to the original purchaser. The actual part will be repaired or replaced free of charge with the owner paying all other costs including installation, labor, shipping and handling.
ADA Compatible
No
Certification
ETL
Prop 65
Yes
Freight Class
100
Shipping Weight
170
Carton Height
32"
Carton Width
41"
Carton Depth
31"
Shipping Method
LTL
Electrical
120VAC-0.5A-50/60Hz
Frequency (Hz)
50/60
Voltage (volts)
120V
Wattage (watts)
60 watts
Accessories Included
Rotisserie, Spit, Motor & Forks
Appliance Type
Outdoor
Assembly Required
No
Color/Finish
Stainless Steel
Commerical/Residential
Residential
Control Type
Illuminated knob and push button
Firebox Depth (Inches)
19 15/16"
Firebox Width (Inches)
33 3/4"
Fits No. of Burgers
35
Front/Side Shelf
No
Fuel Conversion Kit
Included
Grill Grate/Surface Material
304 Stainless Steel
Hood Material
304 Stainless Steel
Ignition
Flame Thrower
Integrated Smoker Box
No
Interior Lighting
(2) Integral Halogen
LIght Colors
Blue LED Accent
Light Type
Twin Internal Halogen/Blue LED Accent
Main Burner BTUs
22000
Main Burner Material
Cast 304 Stainless Steel
Number of Main Burners
2
Number of Sear Burners
1
Primary Cooking Space (sq. in)
665
Returnable
No
Rotiss Burner BTUs
11000
Rotiss Burner Material
Ceramic InfraRed
Rotisserie Burner
1
Sear Burner BTUs
22000
Sear Burner Material
Ceramic InfraRed
Secondary Cooking Space (sq in.)
313
Temperature Gauge
Yes
Total Cooking Area (Sq. Inches)
978
Wireless Compatibility
No
Control Lighting
Blue LED Accent
Fuel Type
Propane (LP)
Location
Outdoor
Total BTU output
66000
Force Multiples
1
GTIN
00814830011354
EAN
0814830011354
UPC
814830011354
Separate cooking zones powered by 22,000 BTU Burners
Expanded Primary and secondary cooking areas
(2) 304 Cast Stainless Lifetime Warranty Burners
(1) Variable Ceramic InfraRed Burner 400-1000 in under a minute
Reliable Flame Thrower Ignition no electricity required
11,000 BTU Rotisserie Capable of handling a 25lb Roast
Ceramic briquette trays distribute heat and reduce flare-ups
304 Stainless Steel welded construction throughout
Full width 304 Stainless drip tray with drain for easy clean up
RADIANT BRIQUETTES
304 STAINLESS WELDED CONSTRUCTION
FLAME THROWER IGNITION
COOKING ZONES
ELEGANT LIGHTING
RAPID RESPONSE INFRARED BURNER
MAKE YOUR MARK
NO HEAVY LIFTING
MORE VERSATILE SPACE
ONE GOOD TURN
CAST STAINLESS STEEL BURNERS
