PRODUCT DESCRIPTION
Specifications
Brand
Zephyr
Manufacturer
Zephyr
Category
Range Hood
Sub-Category
Insert
Vent Type
Convertible
UPC
646328009891
GTIN
00646328009891
Country of Origin
Taiwan
Model Group
AK85-A
Model Name

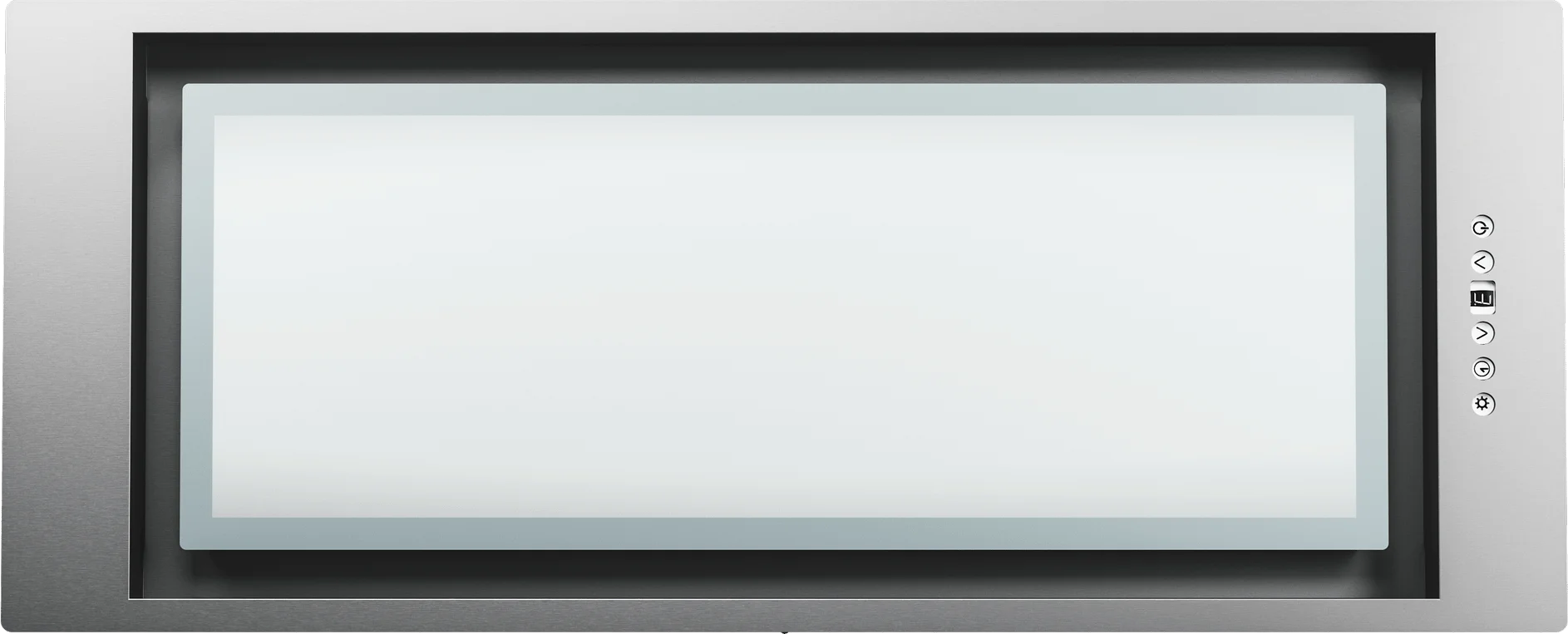

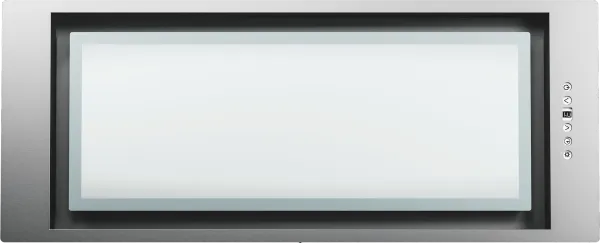

Tornado Glo Insert
Collection
Core Collection
Blower Included
Yes
Blower CFM w/ACT
390, 290
Internal Blower 1 CFM
600
Internal Blower 1 Min. Sones
1.4
Internal Blower 1 Max Sones
6
Minimum CFM
200
Installation Type
Insert
For Outdoor Use
No
Color
Stainless Steel
Controls Type
Electronic
Blower Speeds
6
Automatic Delay-Off
Yes
Clean Air Function
Yes
Lighting Type
LED
Lights Quantity
1
Watts Per Bulb
6
Lights Levels
2
Grease Filter Type
Mesh
Compatible Mesh or Baffle Filter Part Number
50200067
Duct Discharge
Vertical or Horizontal
Duct Size; Horizontal; IN
6
Duct Size; Vertical; IN
6
Mounting Height Above Cooktop; IN
20 - 34
Voltage
120
Maximum Amperage
3
ADA Compliant
Yes, with optional remote
Warranty Parts / Labor
3 / 1
Compatible Appliances
AK0800AS, AK0836AS, ZRC-0085, Z0F-C085, MUA006A, 14000005
Bluetooth Connected
No
Wi-Fi Connected
No
Remote Included
No
Remote Optional
Yes
Energy Star Certified
No
Alexa & Google Home Compatible
No
CEC Title 20 Compliant
Yes
Primary Material
Stainless Steel
Wattage
360
Certification
UL
Nominal Width; IN
28
Net Width; IN
27.1875
Net Depth; IN
11.1875
Net Height; IN
11.25
Weight; LBS
20.5
Ceiling Height Minimum
8 ft.
Ceiling Height Maximum
12 ft.
Shipping Length; IN
31
Shipping Width; IN
15
Shipping Height; IN
17
Shipping Weight; LBS
31
Shipping Method
Small Parcel
Freight Class
125
Certification #
E127334
Clean Filter Alert
No
Cutout Depth in.
10.625
Cutout Width in.
26.875
Duct Type
Vertical
GTIN
00646328009891
EAN
0646328009891
UPC
646328009891
Electronic Touch Controls
Perimeter Aspiration System
Glo(TM) LED Panel
Dual-Level Lighting
Dishwasher Safe Aluminum Mesh Filters
Optional Ductless Recirculating Kit
Optional Liner Accessories
