PRODUCT DESCRIPTION
Specifications
Brand
Zephyr
Manufacturer
Zephyr
Category
Range Hood
Sub-Category
Wall
Vent Type
Ducted
UPC
646328011160
GTIN
00646328011160
Country of Origin
Taiwan
Model Group
COK-C
Model Name

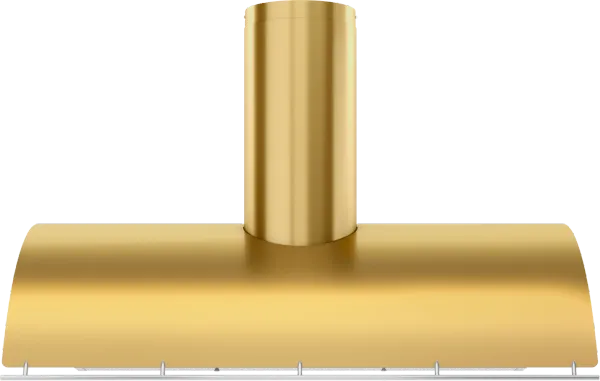

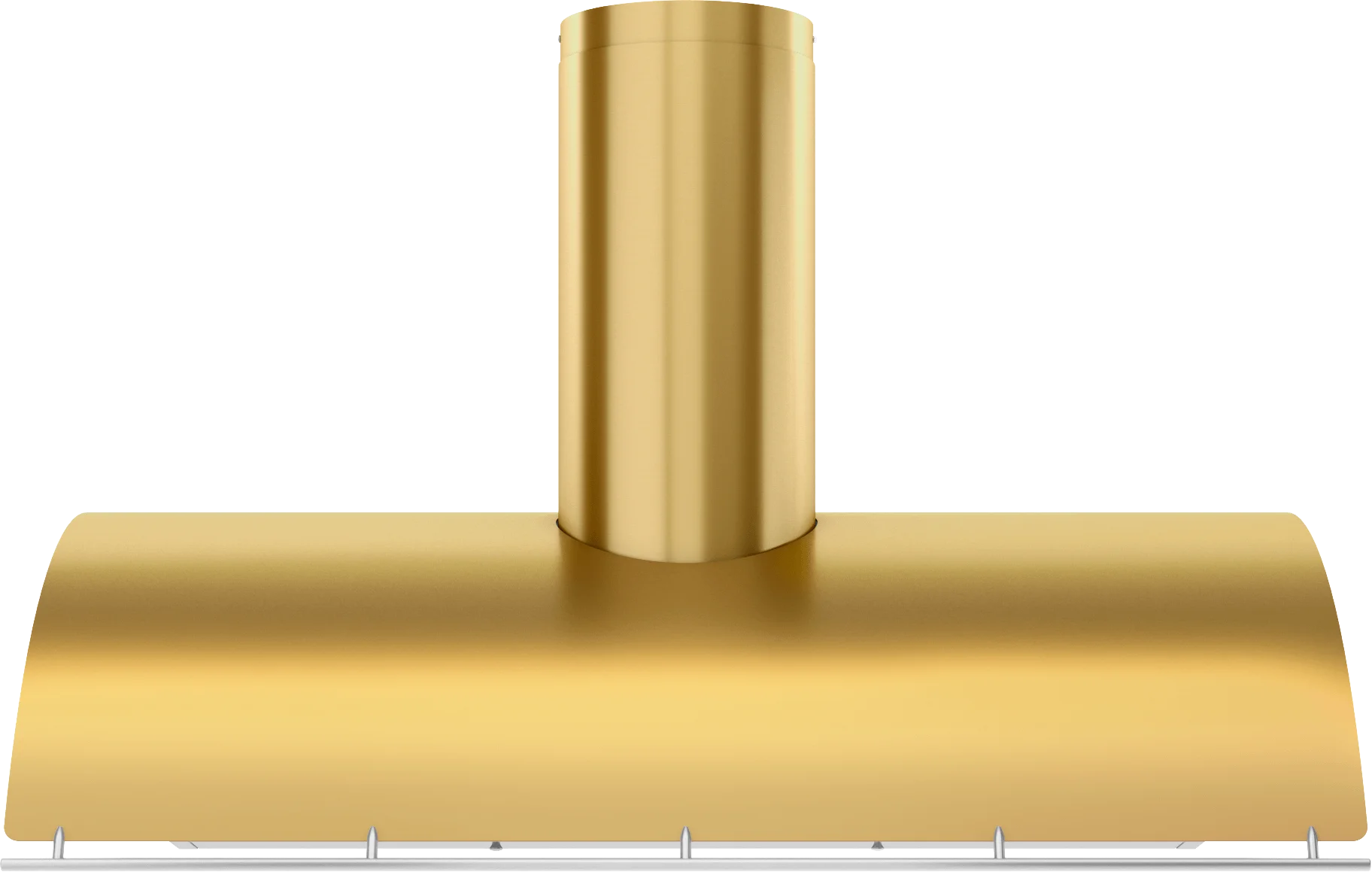

Okeanito Wall
Collection
Designer Collection
Blower Included
No
Internal Blower 1 CFM
290
Internal Blower 1 Min. Sones
1.4
Internal Blower 1 Max Sones
3
Internal Blower 2 CFM
600
Internal Blower 2 Max Sones
6
In-Line Blower CFM
1000
External Blower CFM
1000
Minimum CFM
200
Installation Type
Wall
For Outdoor Use
No
Color
Gold
Controls Type
Electronic
Blower Speeds
3
Automatic Delay-Off
Yes
Clean Air Function
No
Lighting Type
LED
Lights Quantity
2
Watts Per Bulb
6
Lights Levels
2
Grease Filter Type
Pro baffle
Compatible Mesh or Baffle Filter Part Number
50210036
Duct Discharge
Vertical
Duct Size; Vertical; IN
8
Mounting Height Above Cooktop; IN
26 - 36
Voltage
120
Maximum Amperage
6.5
ADA Compliant
Yes, with optional remote
Warranty Parts / Labor
3 / 1
Compatible Appliances
CBI-390A, CBI-290C, CBI-600A, PBN-1000A, CBE-1000, Z1C-00OK, 14000005, MUA006A, MUA008A
Bluetooth Connected
No
Wi-Fi Connected
No
Remote Included
No
Remote Optional
Yes
Energy Star Certified
No
Alexa & Google Home Compatible
No
CEC Title 20 Compliant
Yes
Primary Material
Steel
Wattage
780
Certification
UL
Nominal Width; IN
48
Net Width; IN
48
Net Depth; IN
22.75
Net Height; IN
30.5 - 49.5
Weight; LBS
80.3
Ceiling Height Minimum
8 ft.
Ceiling Height Maximum
9.5 ft.
Shipping Length; IN
18.1
Shipping Width; IN
51.9
Shipping Height; IN
32.7
Shipping Weight; LBS
98.5
Shipping Method
LTL
Freight Class
250
Certification #
E127334
Duct Type
Vertical
GTIN
00646328011160
EAN
0646328011160
UPC
646328011160
Multiple Blower Options
LumiLight LED Lighting
Directional lighting
Professional Baffle Filters
Electronic Touch Controls
Optional Wireless Remote Control (14000005)
Brushed Gold Finish
